HD 2 SNG

General Description

Mercedes Sprinter 519CDI
Length / width / height: 7.50m/2.30m/3.65m
Weight: 5.3t

Power requirements: 32A CEE all broadcasting-relevant components UPS secured
Generator Fischer Panda 15KVA

Satellite transmission equipment

1,9m ERA Antenne
2 x 400W HPA
EIRP 71dBW
2x Ericsson HD/SD Encoder
AVP3000 MPEG4/MPEG2
2 x Ericsson HD/SD IRD
RX8200 MPEG4/MPEG2
RASS /BISS encoding
DVB-S/DVB-S2
3. Encoder Tandberg E5788 MPEG2
3. IRD Tandberg RX 1290 MPEG2
2 x Consumer satellite receivers

Video equipment

Vision mixer
2 ME FOR.A HVS390HS

Kameras
4 cameras, Grass Valley LDK 8000
Lenses as required

Video matrix
64 x 64 Network
Trilogy Mentor XL
IBT Controller
4 x Video processor cards Lynx 5000
2 x Embedder/Deembedder Lynx 5000
Additional audio/video processing via
Riedel Mediornet

Monitoring
4 x 22“ LCD, various multi-viewers or fullscreen
6 x 6" LCD VTR technology

Editing:
Avid Media Composer
with multi-channel live ingest
EVS optional

2 x Recorder/Player as required
1 x DVD-Recorder

Audio equipment

Sound mixer: Yamaha DM 1000
20 analogue inputs
12 analogue outputs
16 AES/EBU inputs
16 AES/EBU outputs
Audiomatrix: 64 x 64 AES/EBU
Monitor: Genelec 1029

Riedel Artist 32
4 x vehicle microphone / broadcasting facility
4 x external microphone / broadcasting facility
double presenter unit

2 x ISDN Codec Mayah C1161
2 x Glennsound GSM Hybrid
2 x Telos Telefonhybrid
1 x radio interface, semi-duplex

Fibre optics system
1 external stage box
Audio / Video / Intercom
via Riedel Mediornet Compact Pro

Additional Views

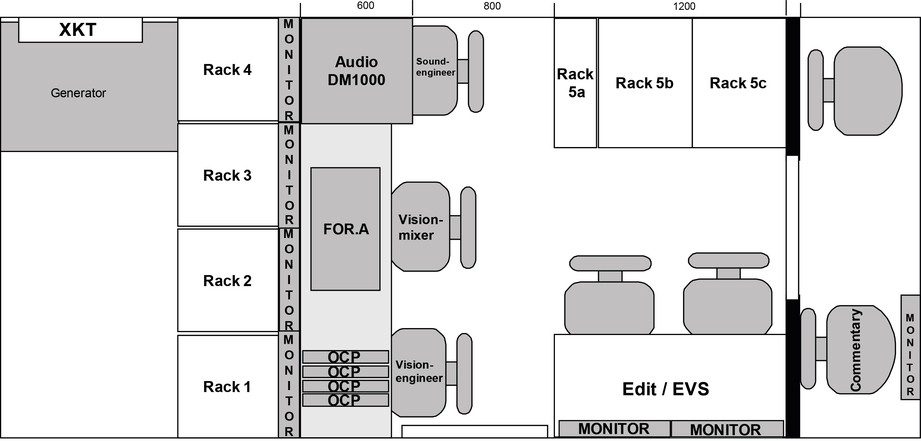

OB Van Layout
